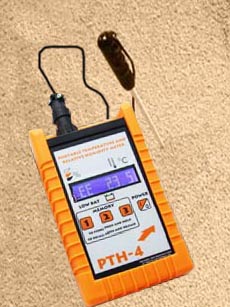

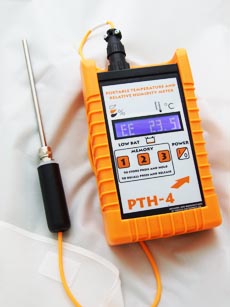

PTH-4 Portable Temperature and Relative Humidity Meter

Portable Temperature and Humidity Measurements.
The PTH-4 is an accurate temperature and humidity meter. Housed is a tough plastic case with a clear display with easy to use features.

This self-contained battery operated meter provides the ideal solution for measurements. The design utilises the very latest digital technology. Accurate results can be achieved from any user.

The PTH-4 provides temperature readings to an accuracy of 0.2c and RH% to +/- 0.5% with the necessary sensors attached. This unit is compatible with the all Stealth sensors excluding the Aspirated Screen RH% sensor. Typical battery life is 12 months. All electrical connections are made via the 4 way AMP connector.



Typical applications include spot checking of ambient and process conditions, for quality control of processes, refrigerated cold stores, Grain Silos, Mushroom growing sheds and other agricultural applications including Ambient Sugar Beet Stores. All measurements can be taken in harsh environmental conditions at a competitive price.



The PTH-4 is supplied ready to use and battery is included. See RH and Temperature probes selection for the actual sensor type you require for your application.



Features:-

• Backlit Blue Display with battery saving feature


• Easy to read large digit display of temp and RH%


• Improved accuracy of +/- 0.1'c and 0.5% RH


• Connects to standard jack plug or 4 way AMP


• Fully compatiable with Stealth Range of sensors


• Extended temperature range -10.0c to + 95.0'c


• Rugged case drop resistance.


• Hi visibility enclosure


• Internal Datalogging of readings


• Low battery indication


• Rechargeable batteries with long life


• Mains supply included


• UK Designed and manufactured


• UKAS Calibration available
